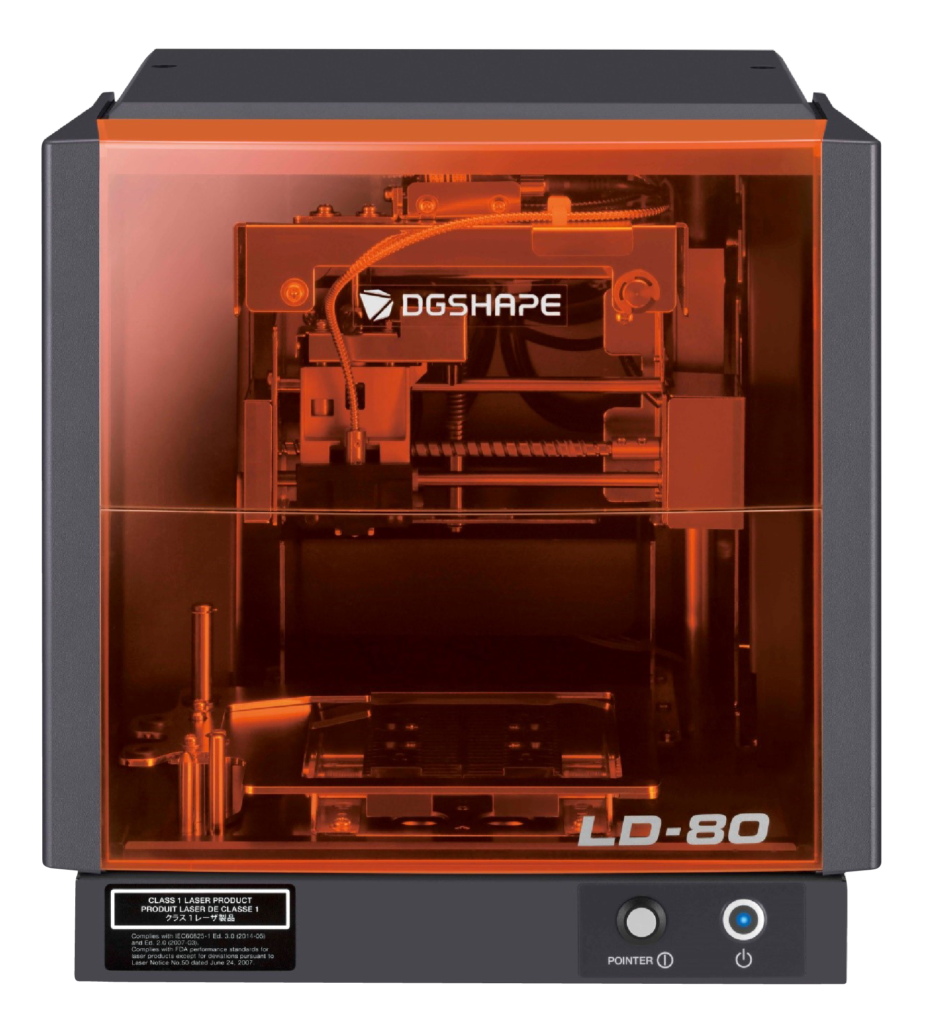

LD-80

Laser Decoration
Digital Personalization

Luxury

Ease of Use

Advanced Technology

Previous
Next

Enhance

Add Luxury to Any Item

Whether you want a holographic, metallic, or gloss finish on your media, the LD-80 is compatible with a wide variety of foils with different textures and colors for a myriad of unique personalization results.

Traditional foil stamping technology uses high heat and pressure which can damage the material being marked. DGSHAPE Laser Decorating technology can imprint adhesive backed foils on to paper and soft plastics without any damage to the substrate.

Simply enter your personalized text, upload a graphic, and with precision and ease, your unique designs are transferred onto polycarbonate, acrylic, and other plastics. The DGSHAPE LD-80 is easy-to-use and safe-to-operate, using a Class 1 laser to heat transfer metalized foils onto gifts, promotional giveaways, merchandise and so much more. With the LD-80, you’ll take objects from average to amazing in minutes.

Ease of Use

Load it and Go!

The LD-80 comes bundled with a center vise for securing materials during decoration.

The yellow thermal application sheet easily swings back and forth to load materials in seconds.

A compact machine that can be taken to different locations and events for on-demand personalization— expand your business beyond the storefront.

Runs safe and clean with no debris or gas leakage.

An industry-first in personalization, the LD-80 Laser Decorator offers a unique opportunity for your kiosk, gift shop, online store or personalization business to create exciting new custom products with dazzling text and reflective graphics.

Advanced Technology

LASER!!

Light Amplified Select Emission Radiation sounds fancy doesn’t it? Well, we took the fancy and put it to good use making even fancier items with our Laser Decorator line of products.

Using a semiconductor laser, combined with our revolutionary motion control firmware, our laser decoration technology transfers metallic foil to promotional products which can be very difficult with conventional hot-foil stamping technology. The laser focuses heat to activate the adhesive on these foils, only in the areas needed, to decorate logos and text on a variety of different materials.

LD laser technology

This is where the real magic happens.

DGSHAPE’s proprietary technology focuses the bue light from the diode laser into heat at the exact resolution needed to activate the adhesive in the metallic foil.

LD-80 has a spring loaded head mechanism that tracks the surface of the printed object ensuring an even imprint across the entire surface of the decorated item.

LD laser technology

BUNDLED SOFTWARE

MetazaStudio

You don’t need to be a graphics expert to design and output artwork in METAZAStudio Software.
MetazaStudio LD

Import and edit a wide range of files in METAZAStudio and get detailed text and image results with the LD-80.

Input your serial data, including numbers and names to produce items for multiple customers.

MetazaStudio LD
LD-80

LD-80

ADDITIONAL INFORMATION

  • SPECIFICATIONS
  • ACCESSORIES
  • FAQ
Transferable Material

Soft Plastics (ABS, Polycarbonate, Acrylics)

Loadable Workpiece

Width: Up to 100 mm (3.94 in), Depth: Up to 200 mm (7.87 in), Height: Up to 20 mm (0.79 in)

Design Options

Vector/Outline, Region Fill (scan line, island fill), text, illustration; Resolution: 318 dpi (text), 1270 dpi (vector)

Printable Area

Up to 80 mm x 80 mm (3.15 in x 3.15 in)

Decorating Options

Unidirectional or Bidirectional

Safety Measures

When cover opens, laser supply turns off; Orange filter to block laser light

Interface

USB

Light Source

Imprinting: Class 4 laser, Positioning: Class 1 laser

Power Requirements

AC 100-240V ± 10% (dedicated adapter), 50-60 Hz, DC 19V, 1.0A

Power Consumption

Approx. 14 W

Operating Noise

70 dB(A) or less

External Dimensions

Width: 286 mm (11.3 in), Depth: 383 mm (15.1 in), Height: 308 mm (12.2 in)

Weight

12 kg (26.5 lbs)

Installation Environment

Temperature: 10-30°C (50-86°F), Relative Humidity: 35-80%

The LD-80 comes with Power cord, USB cable, Center Vise, Holding Fixture, AC adapter, setup guide, material retainer, film frame, and MetazaStudio software.

Contact an authorized DGSHAPE distributor to obtain certified DGSHAPE spare parts and accessories.

LD-80, like all DGSHAPE devices, is part of an "Open System" where any CAD, scanner, and CAM can be used to complete your own personal workflow that you are familiar with. We do not have any proprietary components or software and we do not charge a fee to "unlock" any part of our system.

Frequently Asked Questions

DGSHAPE is a member of the Roland DG group of companies and our products are sold and serviced through its network of distribution partners around the world.

In most cases, DGSHAPE will warranty the machine for up to 1 year after install, however regional regulations will determine specific warranty policies around replacement of consumable items and hardware repair. Contact an authorized DGSHAPE distributor for details.

LD-80

Get LD-80 Today!
